Specific representation
Available
Package quantity: 1
ISO: 570-SVLBR-80-16
Material Id: 5764421
EAN: 12004215
ANSI: 570-SVLBR-80-16

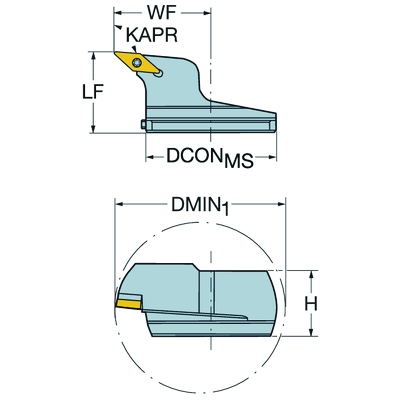

Technical illustrations

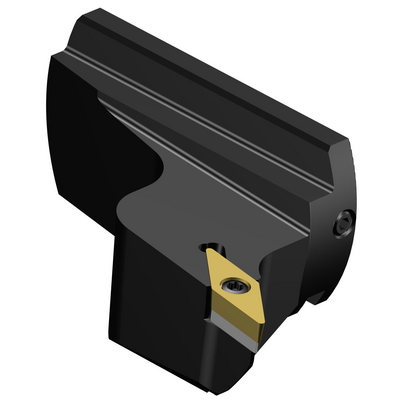

Generic representation
Product data
Tool cutting edge angle(KAPR_1)
95 °
Lead angle(PSIR)
-5 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
VBMT 160408/ VCMT 160408
Connection - machine side(ADINTMS)
SL head (quick change) -size 80

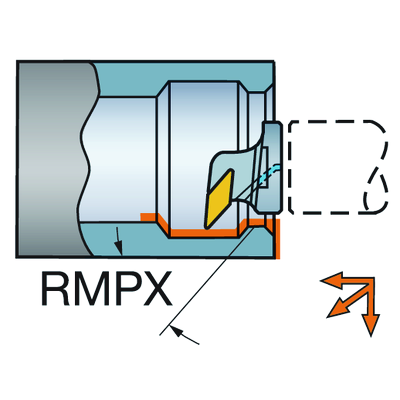

Maximum ramping angle
(RMPX)
45 °
Minimum bore diameter
(DMIN_1)
100 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
45.7 mm
Hand
(HAND)
Right
Coolant exit style(CXSC)
no coolant exit
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
80 mm
Shank height(H)
37.5 mm
Functional length(LF)
45.7 mm
Functional width(WF)
57 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
-4 °
Torque(TQ)
3 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.4879 kg
Master insert identification(MIID)
VBMT 16 04 08
Overall length(OAL)
45.7 mm
Insert seat - metric(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
1/31/05
Release pack id(RELEASEPACK)
05.1
