860.1-1000-031A0-PM P1BM
860.1-1000-031A0-PM P1BM
CoroDrill® 860-PM, solid carbide drillchevron_right

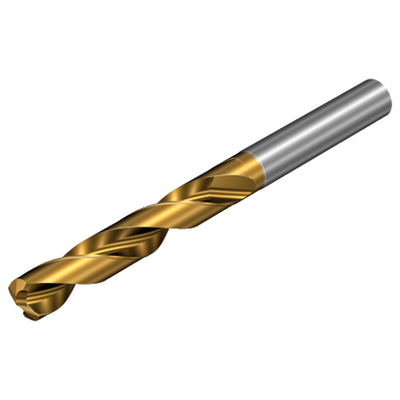

Generic representation
Available within a week
Package quantity: 1
ISO: 860.1-1000-031A0-PM P1BM
Material Id: 8150984
EAN: 7323226352207
ANSI: 860.1-1000-031A0-PM P1BM

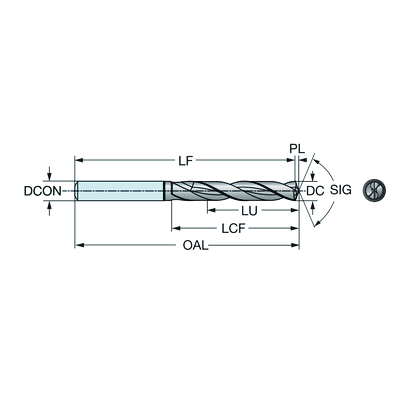

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Cutting diameter
(DC)
10 mm
Connection diameter machine side(DCONMS)
10 mm
Usable length
(LU)
31 mm
Achievable hole tolerance(TCHA)
H8
Usable length diameter ratio
(ULDR)
3.1
Orthogonal rake angle(GAMO)
20.45 °
Face effective cutt edge count(ZEFF)
2
Connection - machine side(ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 10
Connection diameter tolerance(TCDCON)
h6
Grade
(GRADE)
P1BM
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlSiN+TiSiN
Shank standard group(BSG)
DIN 6537 K
Chip breaker(CBMD)
PM
Coolant entry style(CNSC)
without coolant entry
Point angle(SIG)
147 °
Point length(PL)
1.4811 mm
Overall length(OAL)
89 mm
Functional length(LF)
87.4 mm
Chip flute length(LCF)
47 mm
Rotational speed maximum(RPMX)
7,958 1/min
Weight of item(WT)
0.0757 kg
Release date(ValFrom20)
2/19/22
Release pack id(RELEASEPACK)
22.1
