860.1-1000-081A1-SD S2BM
860.1-1000-081A1-SD S2BM
CoroDrill® 860-SD, solid carbide drill for ISO-Schevron_right

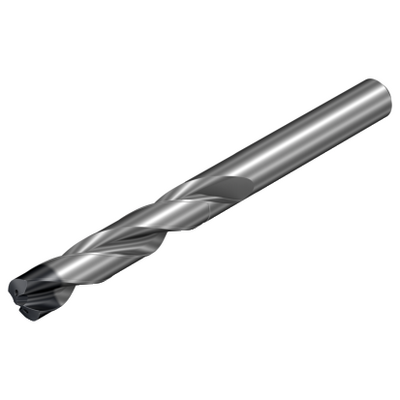

Generic representation
Available within a week
Package quantity: 1
ISO: 860.1-1000-081A1-SD S2BM
Material Id: 8421303
EAN: 7323227466705
ANSI: 860.1-1000-081A1-SD S2BM

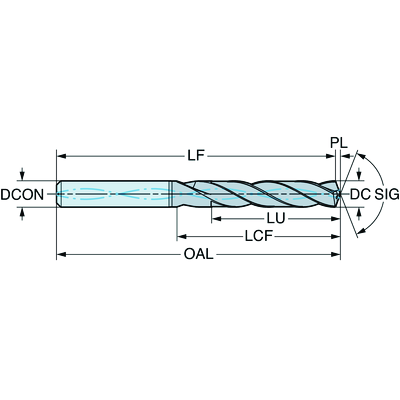

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Cutting diameter
(DC)
10 mm
Connection diameter machine side(DCONMS)
10 mm
Usable length
(LU)
81.82 mm
Achievable hole tolerance(TCHA)
H9
Usable length diameter ratio
(ULDR)
8.182
Orthogonal rake angle(GAMO)
20.45 °
Face effective cutt edge count(ZEFF)
2
Connection - machine side(ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 10
Connection diameter tolerance(TCDCON)
h6
Grade
(GRADE)
S2BM
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlSiN
Shank standard group(BSG)
COROMANT
Chip breaker(CBMD)
SD
Coolant entry style(CNSC)
axial concentric entry on circle
Point angle(SIG)
140 °
Point length(PL)
1.8199 mm
Overall length(OAL)
152 mm
Functional length(LF)
150.18 mm
Chip flute length(LCF)
106 mm
Rotational speed maximum(RPMX)
1,083 1/min
Weight of item(WT)
0.13 kg
Release date(ValFrom20)
9/1/23
Release pack id(RELEASEPACK)
23.2
