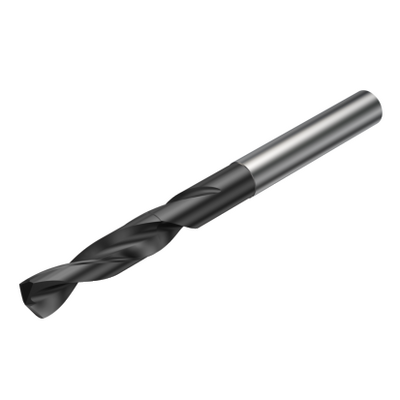

Generic representation
Out of stock
Package quantity: 1
ISO: 863.1-0635-026A0-O N20C
Material Id: 7096114
EAN: 7323221259754
ANSI: 863.1-0635-026A0-O N20C

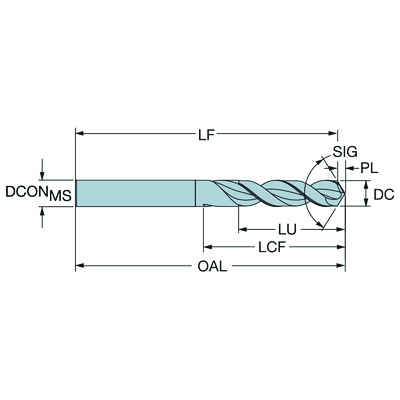

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Cutting diameter
(DC)
6.354 mm
Connection diameter machine side(DCONMS)
6 mm
Usable length
(LU)
26 mm
Achievable hole tolerance(TCHA)
H8
Achievable hole tolerance lower(TCHAL)
6.354 mm
Achievable hole tolerance upper(TCHAU)
6.376 mm
Usable length diameter ratio
(ULDR)
4.0919
Orthogonal rake angle(GAMO)
16.22 °
Face effective cutt edge count(ZEFF)
2
Connection - machine side(ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 6
Connection diameter tolerance(TCDCON)
h6
Grade
(GRADE)
N20C
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD Sp3
Shank standard group(BSG)
COROMANT
Chip breaker(CBMD)
O
Coolant entry style(CNSC)
without coolant entry
Point angle(SIG)
118 °
Point length(PL)
1.84 mm
Overall length(OAL)
75 mm
Functional length(LF)
73.16 mm
Chip flute length(LCF)
37 mm
Rotational speed maximum(RPMX)
20,000 1/min
Weight of item(WT)
0.031 kg
Release date(ValFrom20)
5/18/16
Release pack id(RELEASEPACK)
16.2
