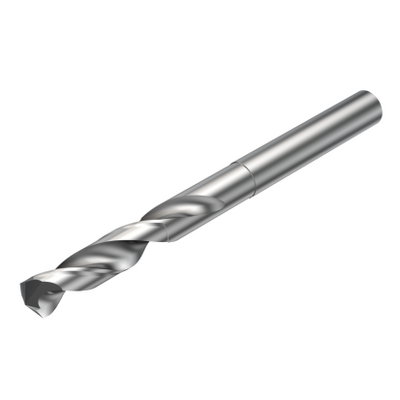

Generic representation
Available within a week
Package quantity: 1
ISO: 863.1-1112-043A1-OS H10F
Material Id: 6882087
EAN: 7323220338672
ANSI: 863.1-1112-043A1-OS H10F
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Cutting diameter
(DC)
11.122 mm
Connection diameter machine side(DCONMS)
12 mm
Usable length
(LU)
43 mm
Achievable hole tolerance(TCHA)
H8
Achievable hole tolerance lower(TCHAL)
11.122 mm
Achievable hole tolerance upper(TCHAU)
11.144 mm
Usable length diameter ratio
(ULDR)
3.8662
Orthogonal rake angle(GAMO)
16.22 °
Face effective cutt edge count(ZEFF)
2
Connection - machine side(ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 12
Connection diameter tolerance(TCDCON)
h6
Grade
(GRADE)
H10F
Substrate(SUBSTRATE)
HF
Shank standard group(BSG)
COROMANT
Chip breaker(CBMD)
OS
Coolant entry style(CNSC)
axial concentric entry on circle
Coolant pressure(CP)
9 bar
Point angle(SIG)
135 °
Point length(PL)
4.62 mm
Overall length(OAL)
105 mm
Functional length(LF)
100.38 mm
Chip flute length(LCF)
58 mm
Rotational speed maximum(RPMX)
1,200 1/min
Weight of item(WT)
0.12 kg
Release date(ValFrom20)
9/23/15
Release pack id(RELEASEPACK)
15.2
