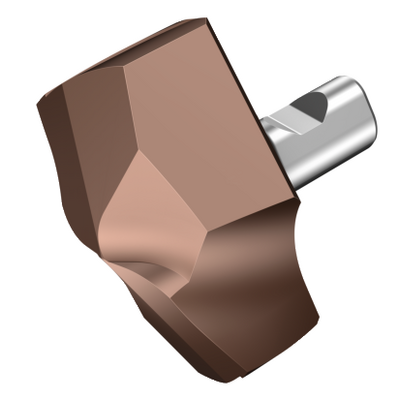

Generic representation
Out of stock
Package quantity: 1
ISO: 870-2360-23-PM 4234
Material Id: 6239392
EAN: 26239392
ANSI: 870-2360-23-PM 4234
Start values
P2.1.Z.AN, Hardness: 175 HB
P
fn 0.34 mm/r (0.2 - 0.5)
vc 110 m/min (140 - 80)
N1.3.C.AG, Hardness: 90 HB
N
fn 0.35 mm/r (0.27 - 0.45)
vc 210 m/min (250 - 160)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
Insert mounting style code (metric)(IFS)
other clamping system
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill 870 -size 23
Cutting edge count(CEDC)
1
Cutting diameter
(DC)
23.6 mm
Achievable hole tolerance(TCHA)
H9
Point angle(SIG)
142 °
Hand
(HAND)
Right
Grade
(GRADE)
4234
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Point length(PL)
3.56 mm
Functional length(LF)
10.94 mm
Weight of item(WT)
0.033 kg
Overall length(OAL)
24 mm
Insert seat - metric(SSC_M)
23
Insert seat size code imperial view(SSC_N)
23
Release date(ValFrom20)
9/19/12
Release pack id(RELEASEPACK)
12.2
