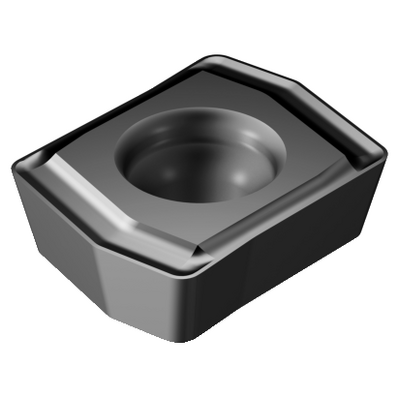

Generic representation
Available
Package quantity: 10
ISO: 880-01 02 W04H-P-GR 4324
Material Id: 6626820
EAN: 26626820
ANSI: 880-01 02 W04H-P-GR 4324
Start values (LxD 3 )
P2.1.Z.AN, Hardness: 175 HB
P
fn 0.11 mm/r (0.04 - 0.15)
vc 255 m/min (305 - 180)
K2.2.C.UT, Hardness: 245 HB
K
fn 0.11 mm/r (0.06 - 0.15)
vc 195 m/min (240 - 125)
Start values (LxD 5 )
P2.1.Z.AN, Hardness: 175 HB
P
fn 0.07 mm/r (0.03 - 0.09)
vc 255 m/min (305 - 180)
K2.2.C.UT, Hardness: 245 HB
K
fn 0.08 mm/r (0.04 - 0.1)
vc 195 m/min (240 - 125)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
K
Insert usage code(INSUC)
P
Chip breaker(CBMD)
GR
Operation type
(CTPT)
high feed
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.2 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill 880 -0102-P
Cutting edge count(CEDC)
2
Insert width(W1)
4.8 mm
Corner radius
(RE)
0.4 mm
Wiper insert(WEP)
Yes
Insert rake angle(GAN)
10 °
Grade
(GRADE)
4324
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3
Insert thickness(S)
2.2 mm
Weight of item(WT)
0.0002 kg
Insert seat - metric(SSC_M)
01P
Insert seat size code imperial view(SSC_N)
01P
Release date(ValFrom20)
10/16/14
Release pack id(RELEASEPACK)
15.1
