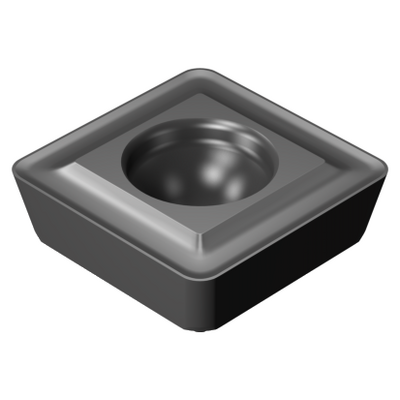

Generic representation
Available
Package quantity: 5
ISO: 880-06 04 W08H-P-MS N124
Material Id: 7362185
EAN: 7323222182549
ANSI: 880-06 04 W08H-P-MS N124
Start values (LxD 3 )
N1.3.C.AG, Hardness: 90 HB
N
fn 0.17 mm/r (0.1 - 0.22)
vc 460 m/min (600 - 250)
Start values (LxD 5 )
N1.3.C.AG, Hardness: 90 HB
N
fn 0.12 mm/r (0.07 - 0.15)
vc 460 m/min (600 - 250)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
N
Insert usage code(INSUC)
P
Chip breaker(CBMD)
MS
Operation type
(CTPT)
medium feed
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill 880 -0604-P
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
10.65 mm
Insert shape code(SC)
Square
Corner radius
(RE)
0.8 mm
Wiper insert(WEP)
Yes
Insert rake angle(GAN)
15 °
Grade
(GRADE)
N124
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD DCT Sp3
Insert thickness(S)
3.5 mm
Weight of item(WT)
0.003 kg
Insert seat - metric(SSC_M)
06P
Insert seat size code imperial view(SSC_N)
06P
Release date(ValFrom20)
9/1/17
Release pack id(RELEASEPACK)
17.2
