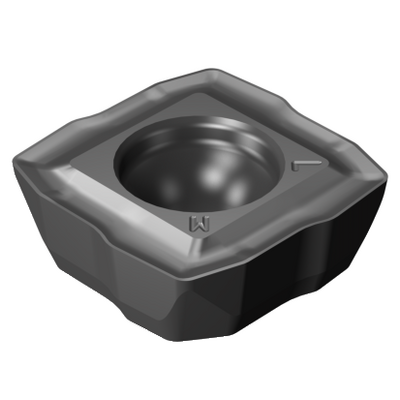

Generic representation
Available
Package quantity: 2
ISO: 880-09 06 08H-C-LM N134
Material Id: 7362169
EAN: 7323222182488
ANSI: 880-09 06 08H-C-LM N134
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
N
Insert usage code(INSUC)
C
Chip breaker(CBMD)
LM
Operation type
(CTPT)
medium feed
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.7 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill 880 -0906-C
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
17.9 mm
Corner radius
(RE)
0.8 mm
Insert rake angle(GAN)
15 °
Grade
(GRADE)
N134
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD Sp3
Insert thickness(S)
5.5 mm
Weight of item(WT)
0.0202 kg
Insert seat - metric(SSC_M)
09C
Insert seat size code imperial view(SSC_N)
09C
Release date(ValFrom20)
9/22/17
Release pack id(RELEASEPACK)
17.2
