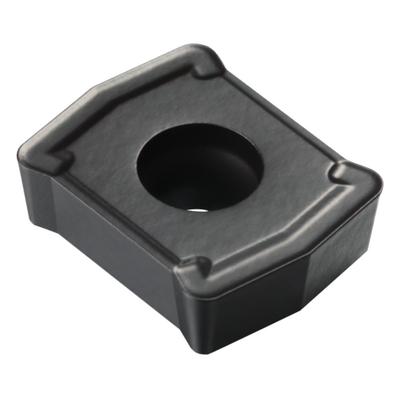

Generic representation
Available within a week
Package quantity: 10
ISO: 881-02 02 04M-P-GM1 4024
Material Id: 5962750
EAN: 25962750
ANSI: 881-02 02 04M-P-GM1 4024
Start values (LxD 1 )
P2.1.Z.AN, Hardness: 175 HB
P
fn 0.09 mm/r (0.04 - 0.13)
vc 245 m/min (290 - 180)
M1.0.Z.AQ, Hardness: 200 HB
M
fn 0.08 mm/r (0.04 - 0.11)
vc 205 m/min (250 - 140)
K2.2.C.UT, Hardness: 245 HB
K
fn 0.08 mm/r (0.04 - 0.11)
vc 190 m/min (230 - 125)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
H
Insert usage code(INSUC)
P
Chip breaker(CBMD)
53
Operation type
(CTPT)
medium feed
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.5 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill 881/U LC: 881-0202-P
Cutting edge count(CEDC)
2
Corner radius
(RE)
0.4 mm
Insert rake angle(GAN)
10 °
Grade
(GRADE)
4024
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3
Insert thickness(S)
2.3813 mm
Weight of item(WT)
0.0011 kg
Insert seat - metric(SSC_M)
02
Insert seat size code imperial view(SSC_N)
3/16
Release date(ValFrom20)
2/16/11
Release pack id(RELEASEPACK)
11.1
