Generic representation
List price: 18.35 EUR
Available
Package quantity: 10
ISO: 881-03 03 08M-P-GM1 2044
Material Id: 5962753
EAN: 25962753
ANSI: 881-03 03 08M-P-GM1 2044
Start values (LxD 1 )
M1.0.Z.AQ, Hardness: 200 HB
M
fn 0.08 mm/r (0.04 - 0.11)
vc 155 m/min (180 - 115)
S2.0.Z.AG, Hardness: 350 HB
S
fn 0.06 mm/r (0.04 - 0.07)
vc 38 m/min (50 - 20)

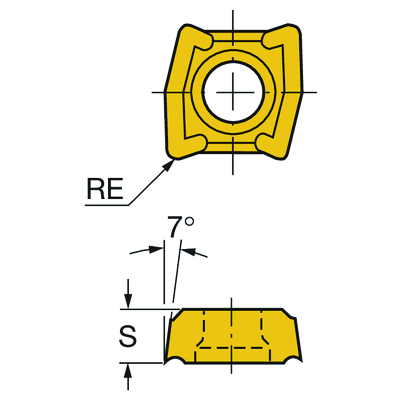

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
S
Insert usage code(INSUC)
P
Chip breaker(CBMD)
53
Operation type
(CTPT)
medium feed
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.5 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill 881/U LC: 881-0303-P
Cutting edge count(CEDC)
2
Corner radius
(RE)
0.8 mm
Insert rake angle(GAN)
18 °
Grade
(GRADE)
2044
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiAlN
Insert thickness(S)
3.175 mm
Weight of item(WT)
0.0011 kg
Insert seat - metric(SSC_M)
03
Insert seat size code imperial view(SSC_N)
7/32
Release date(ValFrom20)
2/16/11
Release pack id(RELEASEPACK)
11.1
