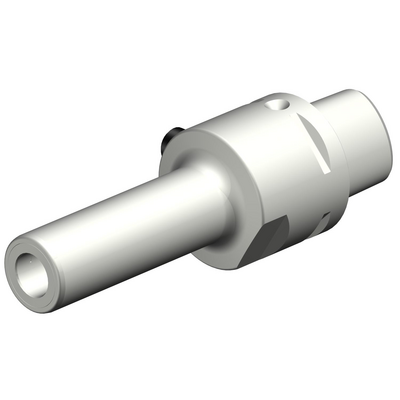

Specific representation
Available
Package quantity: 1
ISO: 930-C4-P-12-100
Material Id: 6255472
EAN: 26255472
ANSI: 930-C4-P-12-100

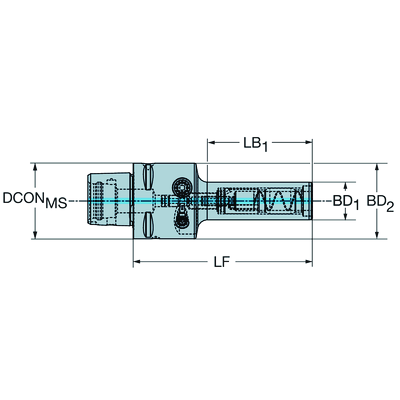

Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C4
Connection - workpiece side
(ADINTWS)
Hydraulic Membrane chuck -metric: 12
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
40 mm
Functional diameter(DFC)
28 mm
Standard number(STDNO)
ISO26623-1
Connection diameter workpiece side(DCONWS)
12 mm
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
100 mm
Body diameter(BD_1)
22 mm
Body diameter(BD_2)
40 mm
Body length(LB_1)
60.8 mm
Body length(LB_2)
100 mm
Body half taper angle(BHTA_1)
0 °
Body half taper angle(BHTA_2)
0 °
Torque(TQ)
8 Nm
Rotational speed maximum(RPMX)
39,000 1/min
Body material(BMC)
Steel
Balancing method code(BLMC)
Balancing by design
Weight of item(WT)
0.508 kg
Overall length(OAL)
124 mm
Release date(ValFrom20)
2/20/13
Release pack id(RELEASEPACK)
13.1
