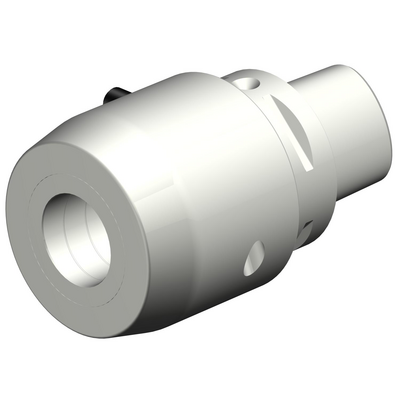

Specific representation
Available
Package quantity: 1
ISO: 930-C6-HD-32-091
Material Id: 6255455
EAN: 26255455
ANSI: 930-C6-HD-32-091
Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C6
Connection - workpiece side
(ADINTWS)
Hydraulic Membrane chuck -metric: 32 (excluding WE/WN shanks)
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
1,160.3019 lbf/in2
Connection diameter machine side(DCONMS)
2.4803 inch
Functional diameter(DFC)
1.7323 inch
Standard number(STDNO)
ISO26623-1
Connection diameter workpiece side(DCONWS)
1.2598 inch
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
3.5827 inch
Body diameter(BD_1)
2.6772 inch
Body diameter(BD_2)
2.9921 inch
Body length(LB_1)
0.7402 inch
Body length(LB_2)
3.5827 inch
Body half taper angle(BHTA_1)
12 °
Body half taper angle(BHTA_2)
0 °
Torque(TQ)
7.3756 ftlbf
Rotational speed maximum(RPMX)
20,000 1/min
Body material(BMC)
Steel
Balancing method code(BLMC)
Balancing by design
Weight of item(WT)
5.796 lb
Overall length(OAL)
5.0787 inch
Release date(ValFrom20)
2/20/13
Release pack id(RELEASEPACK)
13.1
