Specific representation
Available
Package quantity: 1
ISO: 930-C4-T-12-042
Material Id: 6976412
EAN: 7323220795390
ANSI: 930-C4-T-12-042

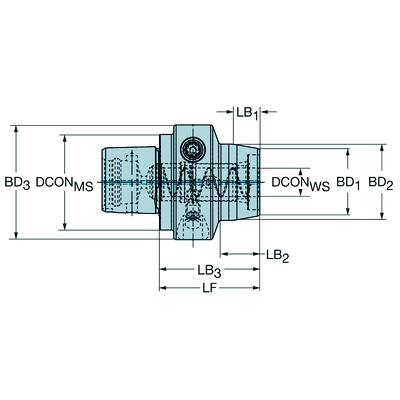

Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
Coromant Capto (segment clamping only) -size C4
Connection - workpiece side
(ADINTWS)
Hydraulic Membrane chuck -metric: 12
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
40 mm
Functional diameter(DFC)
28 mm
Standard number(STDNO)
ISO26623-1
Connection diameter workpiece side(DCONWS)
12 mm
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
42 mm
Body diameter(BD_1)
28 mm
Body diameter(BD_2)
32 mm
Body diameter(BD_3)
48 mm
Body length(LB_1)
11.3 mm
Body length(LB_2)
17 mm
Body length(LB_3)
42 mm
Body half taper angle(BHTA_1)
10 °
Body half taper angle(BHTA_2)
0 °
Body half taper angle(BHTA_3)
0 °
Torque(TQ)
8 Nm
Rotational speed maximum(RPMX)
10,000 1/min
Body material(BMC)
Steel
Balancing method code(BLMC)
Balancing by design
Weight of item(WT)
0.417 kg
Overall length(OAL)
66 mm
Release date(ValFrom20)
2/16/16
Release pack id(RELEASEPACK)
16.1
