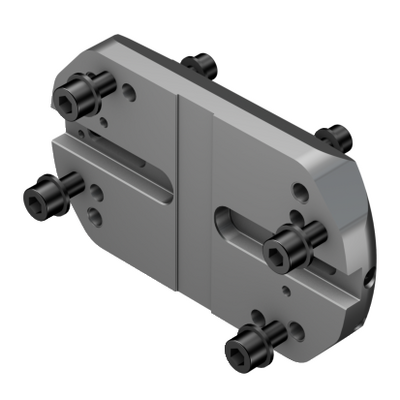

Generic representation
Out of stock
Package quantity: 1
ISO: A33-R822XLS17-LJ030
Material Id: 6872869
EAN: 7323220289479
ANSI: A33-R822XLS17-LJ030
Technical illustrations
Product data
Minimum cutting diameter(DCN)
148 mm
Maximum cutting diameter(DCX)
200 mm
Maximum adjustment limit(ADJLX)
12.5 mm
Connection - machine side(ADINTMS)
Boring arbor -2 key drives -metric: 33
Connection diameter machine side(DCONMS)
33 mm
Connection - workpiece side
(ADINTWS)
Boring Slide -size S17FR
Coolant entry style(CNSC)
axial concentric entry
Functional length(LF_1)
30 mm
Functional width(WF_1)
35.5 mm
Overall length(OAL)
30 mm
Overall height(OAH)
104 mm
Overall width(OAW)
130 mm
Body material(BMC)
Aluminum
Weight of item(WT)
0.94 kg
Release date(ValFrom20)
9/22/15
Release pack id(RELEASEPACK)
15.2
