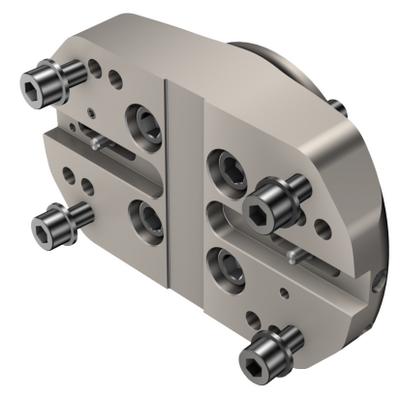

Generic representation
Out of stock
Package quantity: 1
ISO: A40-R822XLS17-LJ 050
Material Id: 6424069
EAN: 26424069
ANSI: A40-R822XLS17-LJ 050

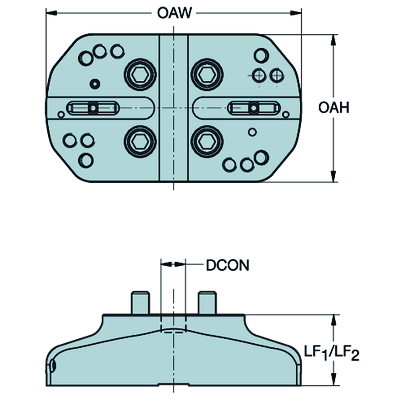

Technical illustrations
Product data
Minimum cutting diameter(DCN)
148 mm
Maximum cutting diameter(DCX)
200 mm
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -C (4 bolts) -metric: 40S
Connection diameter machine side(DCONMS)
40 mm
Connection - workpiece side
(ADINTWS)
Boring Slide -size S17FR
Coolant entry style(CNSC)
axial concentric entry
Functional length(LF_1)
50 mm
Functional width(WF_1)
35.5 mm
Overall length(OAL)
50 mm
Overall height(OAH)
104 mm
Overall width(OAW)
130 mm
Body material(BMC)
Aluminum
Weight of item(WT)
1.477 kg
Release date(ValFrom20)
9/24/13
Release pack id(RELEASEPACK)
13.2
