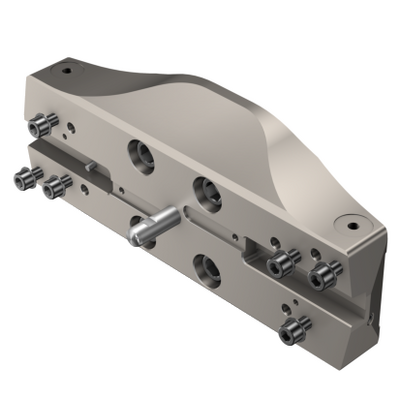

Generic representation
Available within a week
Package quantity: 1
ISO: A40-RXLS24-AO2 072
Material Id: 5924283
EAN: 25924283
ANSI: A40-RXLS24-AO2 072

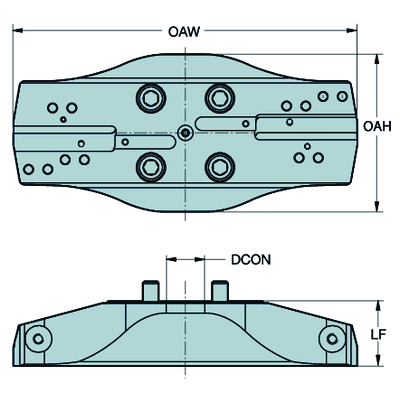

Technical illustrations
Product data
Minimum cutting diameter(DCN)
458 mm
Maximum cutting diameter(DCX)
540 mm
Connection - machine side(ADINTMS)
CoroBore XL Arbor -metric: 40X
Connection diameter machine side(DCONMS)
40 mm
Connection - workpiece side
(ADINTWS)
CoroBore XL Slide -size S24RI
Coolant entry style(CNSC)
axial concentric entry
Functional length(LF_1)
72 mm
Functional width(WF_1)
183.25 mm
Overall length(OAL)
117 mm
Overall height(OAH)
164 mm
Overall width(OAW)
438 mm
Body material(BMC)
Aluminum
Weight of item(WT)
11.425 kg
Release date(ValFrom20)
9/25/10
Release pack id(RELEASEPACK)
10.2
