Generic representation
Available
Package quantity: 10
ISO: BPKX 15 04 PD R SM30
Material Id: 5724511
EAN: 10227722
ANSI: BPKX 15 04 PD R SM30
Start values (KAPR 90 deg )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.007 in (0.004 - 0.008)
hex 0.007 in (0.004 - 0.008)
vc 550 sfm (610 - 530)
M1.0.Z.AQ, Hardness: 200 HB
M
fz 0.007 in (0.004 - 0.008)
hex 0.007 in (0.004 - 0.008)
vc 510 sfm (570 - 485)

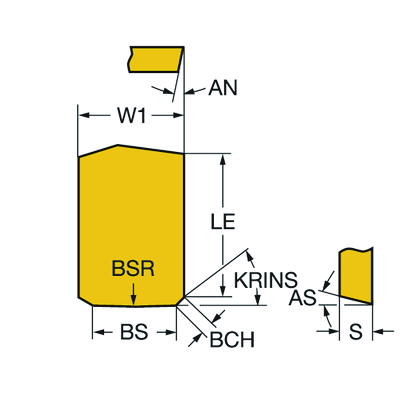

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
Operation type
(CTPT)
pre-machining with demand on surface
Insert size and shape
(CUTINT_SIZESHAPE)
BP1504PD
Cutting edge count(CEDC)
2
Insert shape code(SC)
Rhombic 82
Depth of cut maximum
(APMX)
0.5906 inch
Wiper edge length(BS)
0.0787 inch
Major cutting edge angle(KRINS)
90 °
Hand
(HAND)
Right
Grade
(GRADE)
SM30
Substrate(SUBSTRATE)
HW
Weight of item(WT)
0.0208 lb
Release date(ValFrom20)
6/21/82
Release pack id(RELEASEPACK)
82.1
