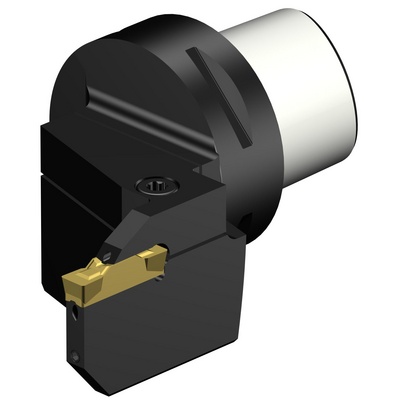

Specific representation
Available
Package quantity: 1
ISO: C2R-CC6-RL30CB
Material Id: 8290096
EAN: 7323226940947
ANSI: C2R-CC6-RL30CB
Technical illustrations
Generic representation
Product data
Cutting depth maximum
(CDX)
30 mm
Clamping type code(MTP)
clamp on top of insert
Insert type(CUTINT_MASTER)
CoroCut 2 -size L (C2I-L2-0800-)
Insert seat - metric(SSC_M)
L
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C6
Workpiece side body angle
(BAWS)
0 °
Maximum overhang
(OHX)
85 mm
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial inclined exit
Coolant pressure(CP)
150 bar
Connection diameter machine side(DCONMS)
63 mm
Functional length(LF)
85 mm
Functional width(WF)
45 mm
Functional height(HF)
0 mm
Torque(TQ)
6.5 Nm
Overall length(OAL)
123 mm
Overall height(OAH)
66.5 mm
Weight of item(WT)
1.281 kg
Insert seat size code imperial view(SSC_N)
L
Release date(ValFrom20)
9/28/22
Release pack id(RELEASEPACK)
22.2
