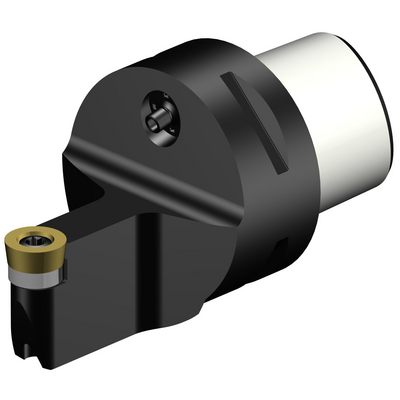

Specific representation
List price: 267.00 EUR
Available
Package quantity: 1
ISO: C4-SRDCN-00050-10A
Material Id: 5727628
EAN: 10530041
ANSI: C4-SRDCN-00050-10A
Technical illustrations
Technical illustrations
Product data
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
metric RCMT 10T3M0
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C4
Maximum ramping angle
(RMPX)
90 °
Minimum bore diameter(DMIN_2)
140 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
50 mm
Usable length
(LU)
25 mm
Hand
(HAND)
Neutral
Coolant exit style(CXSC)
decentral exit with nozzles, adjustable
Coolant entry style(CNSC)
radial entry
Coolant pressure(CP)
40 bar
Connection diameter machine side(DCONMS)
40 mm
Functional length(LF)
50 mm
Functional width(WF)
5 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
0 °
Torque(TQ)
3 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.318 kg
Master insert identification(MIID)
RCMT 10 T3 M0
Overall length(OAL)
74 mm
Insert seat - metric(SSC_M)
10
Insert seat size code imperial view(SSC_N)
.394
Release date(ValFrom20)
8/12/91
Release pack id(RELEASEPACK)
91.3
