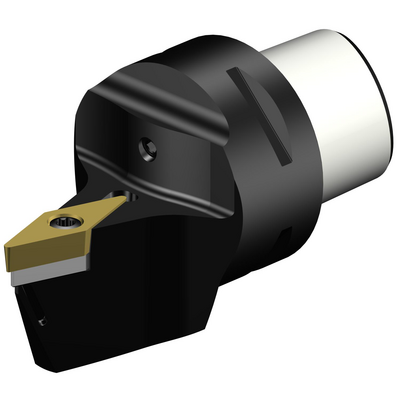

Specific representation
Available within a week
Package quantity: 1
ISO: C4-SVVBN-00055-16C
Material Id: 7884033
EAN: 7323225161954
ANSI: C4-SVVBN-00055-16C

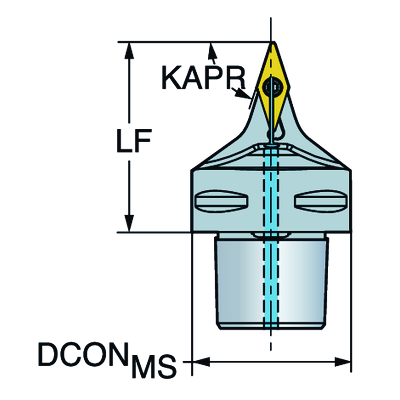

Technical illustrations
Technical illustrations
Product data
Tool cutting edge angle(KAPR_1)
72.5 °
Tool cutting edge angle(KAPR_2)
72.5 °
Lead angle(PSIR)
17.5 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
VBMT 160408/ VCMT 160408
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C4
Maximum ramping angle
(RMPX)
70 °
Minimum bore diameter(DMIN_2)
145 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
55 mm
Hand
(HAND)
Neutral
Coolant exit style(CXSC)
Axially concentric or off-center with nozzle, adjustable
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
150 bar
Connection diameter machine side(DCONMS)
40 mm
Functional length(LF)
55 mm
Functional width(WF)
0.6 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
0 °
Torque(TQ)
3 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.31 kg
Master insert identification(MIID)
VBMT 16 04 08
Overall length(OAL)
79 mm
Insert seat - metric(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
2/20/20
Release pack id(RELEASEPACK)
20.1
