New

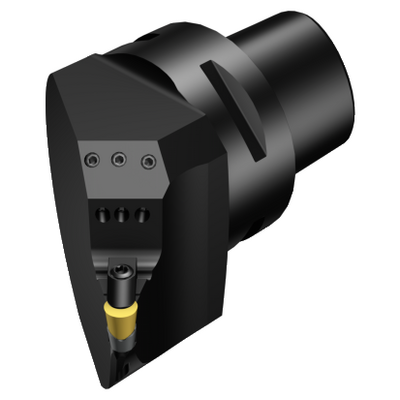

Generic representation
Available within a week
Package quantity: 1
ISO: C5-CRSCR-35060-06A
Material Id: 8232933
EAN: 7323226683479
ANSI: C5-CRSCR-35060-06A

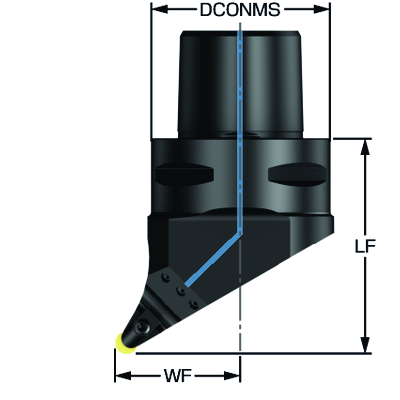

Technical illustrations
Product data
Clamping type code(MTP)
clamp on top of insert
Insert type(CUTINT_MASTER)
inch RCGX/RPGX 060600
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C5
Maximum ramping angle
(RMPX)
45 °
Minimum bore diameter
(DMIN_1)
120 mm
Minimum bore diameter(DMIN_2)
220 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
60 mm
Hand
(HAND)
Right
Coolant exit style(CXSC)
axial inclined focused exit with nozzle
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit type(CXST)
over the cutting edge
Coolant pressure(CP)
150 bar
Connection diameter machine side(DCONMS)
50 mm
Functional length(LF)
60 mm
Functional width(WF)
35 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
0 °
Torque(TQ)
1.2 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.814 kg
Master insert identification(MIID)
RCGX 06 06 00
Overall length(OAL)
90 mm
Insert seat - metric(SSC_M)
06
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
10/30/25
Release pack id(RELEASEPACK)
26.1
