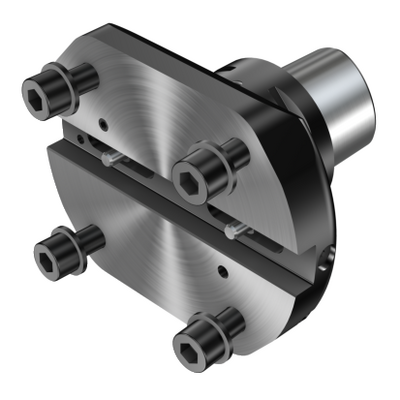

Generic representation
Available within a week
Package quantity: 1
ISO: C6-R825XLS17-AL 058
Material Id: 6352005
EAN: 26352005
ANSI: C6-R825XLS17-AL 058
Technical illustrations
Product data
Minimum cutting diameter(DCN)
248 mm
Maximum cutting diameter(DCX)
300 mm
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C6
Connection diameter machine side(DCONMS)
63 mm
Connection - workpiece side
(ADINTWS)
Boring Slide -size S17F
Coolant entry style(CNSC)
axial concentric and radial entry
Functional length(LF_1)
58 mm
Functional width(WF_1)
86.85 mm
Overall length(OAL)
96 mm
Overall height(OAH)
104 mm
Overall width(OAW)
230 mm
Body material(BMC)
Steel and aluminium
Weight of item(WT)
2.582 kg
Release date(ValFrom20)
2/23/13
Release pack id(RELEASEPACK)
13.1
