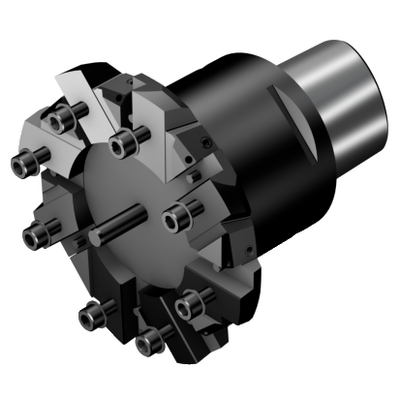

Generic representation
Out of stock
Package quantity: 1
ISO: C8-R820D-137-8-082
Material Id: 7591866
EAN: 7323223833556
ANSI: C8-R820D-137-8-082

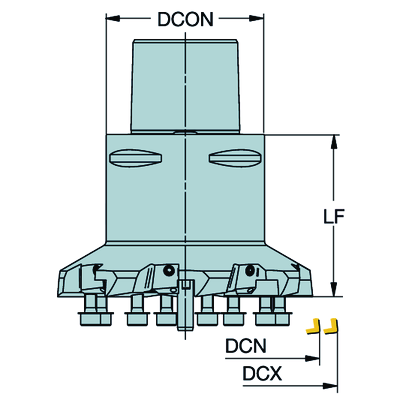

Technical illustrations
Generic representation
Product data
Minimum cutting diameter(DCN)
119 mm
Maximum cutting diameter(DCX)
137 mm
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C8
Adaptive interface workpiece direction(ADINTWS_1)
CoroBore 820 -size D
Adaptive interface workpiece direction(ADINTWS_2)
CoroBore 820 -size D
Adaptive interface workpiece direction(ADINTWS_3)
CoroBore 820 -size D
Adaptive interface workpiece direction(ADINTWS_4)
CoroBore 820 -size D
Adaptive interface workpiece direction(ADINTWS_5)
CoroBore 820 -size D
Adaptive interface workpiece direction(ADINTWS_6)
CoroBore 820 -size D
Adaptive interface workpiece direction(ADINTWS_7)
CoroBore 820 -size D
Adaptive interface workpiece direction(ADINTWS_8)
CoroBore 820 -size D
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style code(CXSC_1)
axial inclined exit
Coolant exit style code(CXSC_2)
axial inclined exit
Coolant exit style code(CXSC_3)
axial inclined exit
Coolant pressure(CP)
70 bar
Standard number(STDNO)
ISO26623-1
Connection diameter machine side(DCONMS)
80 mm
Functional length(LF_1)
82 mm
Functional width(WF_1)
38.95 mm
Body length(LB_1)
82 mm
Body diameter(BD_1)
112.1 mm
Body half taper angle(BHTA_1)
0 °
Torque(TQ)
16 Nm
Body material(BMC)
Steel
Weight of item(WT)
3.95 kg
Overall length(OAL)
130 mm
Release date(ValFrom20)
9/22/18
Release pack id(RELEASEPACK)
18.2
