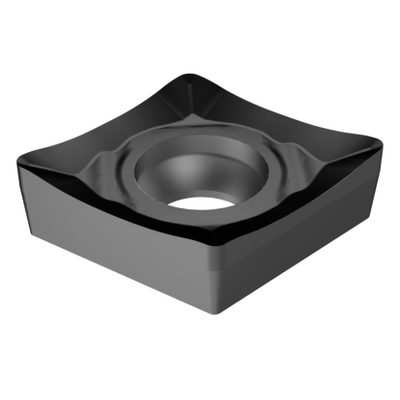

Generic representation
Being replaced by CCGX 06 02 04-AL 1205
Available
Different grade vs. the original product – Please check cutting speed.
List price: 18.75 EUR
Available
Package quantity: 10
ISO: CCGX 06 02 04-AL 1105
Material Id: 6075413
EAN: 26075413
ANSI: CCGX 2(1.5)1-AL 1105
Start values (KAPR 95 deg )
M1.0.Z.AQ, Hardness: 200 HB
M
ap 0.8 mm (0.3 - 2)
fn 0.06 mm/r (0.02 - 0.08)
hex 0.06 mm/r (0.02 - 0.08)
vc 240 m/min (255 - 230)
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.8 mm (0.3 - 1)
fn 0.06 mm/r (0.02 - 0.08)
hex 0.06 mm/r (0.02 - 0.08)
vc 80 m/min (80 - 75)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
S
Chip breaker(CBMD)
AL
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.8 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CC0602
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
6.35 mm
Insert shape code(SC)
Rhombic 80
Cutting edge effective length(LE)
6.048 mm
Corner radius
(RE)
0.3969 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1105
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
2.3813 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0004 kg
Insert seat - metric(SSC_M)
06
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
2/25/12
Release pack id(RELEASEPACK)
12.1
