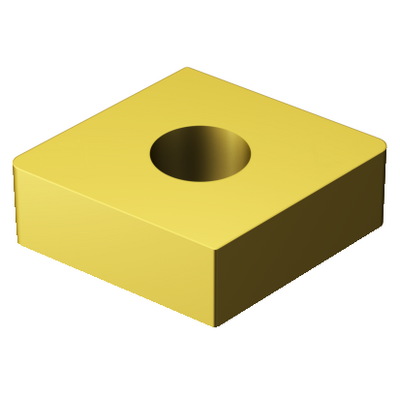

Generic representation
Available
Package quantity: 10
ISO: CNGA120404S01525WH 6050
Material Id: 5724712
EAN: 11598112
ANSI: CNGA431S0625WH 6050
Start values (KAPR 95 deg )
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.1 mm (0.07 - 0.2)
fn 0.18 mm/r (0.06 - 0.27)
hex 0.12 mm/r (0.04 - 0.18)
vc 150 m/min (165 - 125)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
H
Chip breaker(CBMD)
WH
Operation type
(CTPT)
finishing
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CN1204
Cutting edge count(CEDC)
4
Insert shape code(SC)
Rhombic 80
Cutting edge effective length(LE)
12.4959 mm
Corner radius
(RE)
0.3969 mm
Wiper insert(WEP)
Yes
Major cutting edge angle(KRINS)
95 °
Face land width(BN)
0.15 mm
Face land angle(GB)
25 °
Hand
(HAND)
Neutral
Grade
(GRADE)
6050
Substrate(SUBSTRATE)
CC
Coating(COATING)
PVD TiN
Weight of item(WT)
0.0031 kg
Release date(ValFrom20)
7/14/03
Release pack id(RELEASEPACK)
03.2
