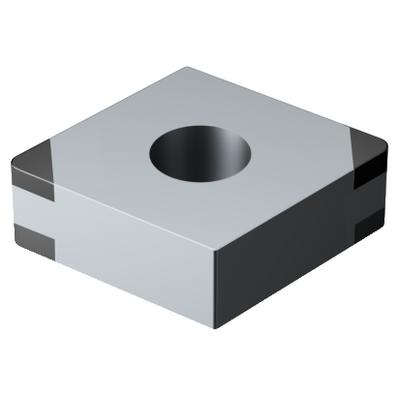

Generic representation
Available
Package quantity: 5
ISO: CNGA120408EA 7014
Material Id: 7941829
EAN: 7323225433518
ANSI: CNGA432AA 7014
Start values (KAPR 30 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.15 mm (0.07 - 0.3)
fn 0.1 mm/r (0.06 - 0.2)
hex 0.05 mm/r (0.03 - 0.1)
vc 280 m/min (290 - 260)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
S
H
Chip breaker(CBMD)
EA
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CN1204 (80deg only)
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Rhombic 80
Cutting edge effective length(LE)
2.1 mm
Corner radius
(RE)
0.7938 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
7014
Substrate(SUBSTRATE)
BL
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0051 kg
Insert seat - metric(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
6/6/20
Release pack id(RELEASEPACK)
20.1
