Generic representation
Available within a week
Package quantity: 5
ISO: CNGX1204L025-18AXA 7025
Material Id: 5725208
EAN: 12455085
ANSI: CNGX1204L025-18AXA 7025
Start values (KAPR 95 deg )
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.2 mm (0.07 - 0.25)
fn 0.35 mm/r (0.25 - 0.45)
hex 0.35 mm/r (0.25 - 0.45)
vc 115 m/min (130 - 105)

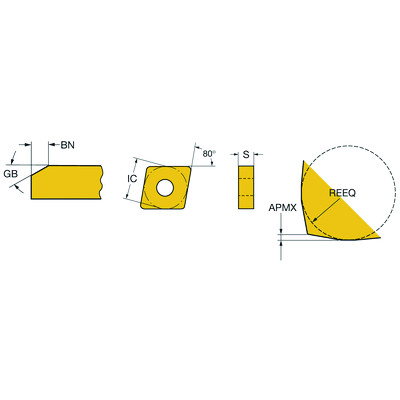

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
H
Chip breaker(CBMD)
XA
Operation type
(CTPT)
finishing
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CN1204 (80deg only)
Insert shape code(SC)
Rhombic 80
Depth of cut maximum
(APMX)
0.25 mm
Corner chamfer(KCH)
86 °
Cutting edge count(CEDC)
4
Wiper edge length(BS)
0.8 mm
Corner radius
(RE)
0 mm
Wiper insert(WEP)
Yes
Major cutting edge angle(KRINS)
95 °
Corner radius equivalent(REEQ)
2.3 mm
Face land width(BN)
0.15 mm
Face land angle(GB)
15 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7025
Substrate(SUBSTRATE)
BL
Weight of item(WT)
0.0045 kg
Release date(ValFrom20)
9/8/09
Release pack id(RELEASEPACK)
09.2
