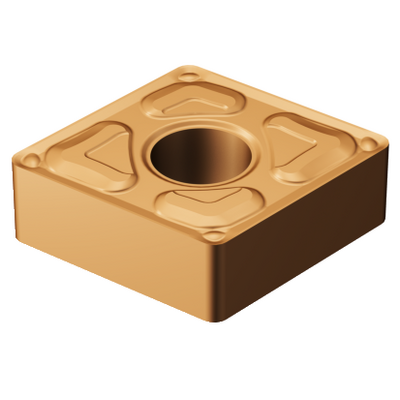

Generic representation
Available
Package quantity: 10
ISO: CNMG 12 04 04-XF GC15
Material Id: 6107601
EAN: 26107601
ANSI: CNMG 431-XF GC15
Start values (KAPR 95 deg )
M1.0.Z.AQ, Hardness: 200 HB
M
ap 0.75 mm (0.15 - 4)
fn 0.15 mm/r (0.04 - 0.2)
hex 0.15 mm/r (0.04 - 0.2)
vc 190 m/min (255 - 170)
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.75 mm (0.15 - 4)
fn 0.15 mm/r (0.04 - 0.2)
hex 0.15 mm/r (0.04 - 0.2)
vc 38 m/min (60 - 28)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
S
Chip breaker(CBMD)
XF
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CN1204
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Rhombic 80
Cutting edge effective length(LE)
12.4959 mm
Corner radius
(RE)
0.3969 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
GC15
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiAlN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0091 kg
Insert seat - metric(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
2/25/12
Release pack id(RELEASEPACK)
12.1
