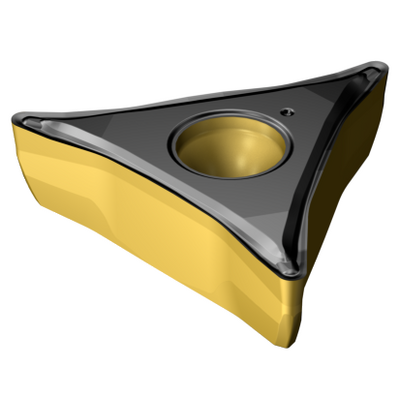

Generic representation
Available
Package quantity: 5
ISO: CP-A1108-L3 4415
Material Id: 7910803
EAN: 7323225297875
ANSI: CP-A1108-L3 4415
Start values (KAPR 30 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 1 mm (0.25 - 3)
fn 0.4 mm/r (0.2 - 0.5)
hex 0.2 mm/r (0.1 - 0.25)
vc 380 m/min (440 - 360)
Start values (KAPR 115 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 0.5 mm (0.4 - 1)
fn 0.22 mm/r (0.11 - 0.27)
hex 0.2 mm/r (0.1 - 0.25)
vc 380 m/min (440 - 360)

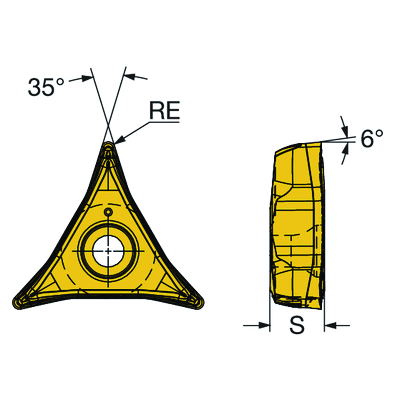

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
Chip breaker(CBMD)
L3
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
3.7 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroTurn PRIME CP-A11
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
11 mm
Corner radius
(RE)
0.7938 mm
Insert rake angle(GAN)
11 °
Hand
(HAND)
Neutral
Grade
(GRADE)
4415
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
6 mm
Clearance angle major(AN)
6 °
Weight of item(WT)
0.0092 kg
Insert seat - metric(SSC_M)
CP-A11
Insert seat size code imperial view(SSC_N)
CP-A11
Release date(ValFrom20)
9/25/20
Release pack id(RELEASEPACK)
20.2
