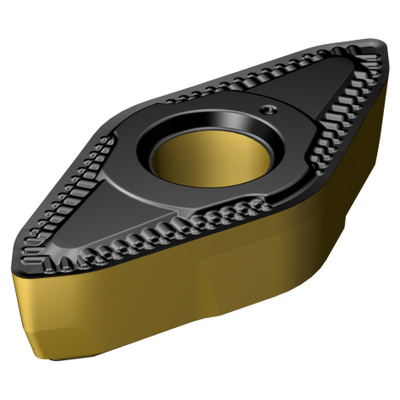

Generic representation
Being replaced by CP-B1108-M5W 4425
Discontinued
Different grade vs. the original product – Please check cutting speed.
Out of stock
Package quantity: 5
ISO: CP-B1108-M5W 4325
Material Id: 7100706
EAN: 7323221284473
ANSI: CP-B1108-M5W 4325
Start values (KAPR 25 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 2 mm (0.5 - 4)
fn 0.59 mm/r (0.31 - 1.21)
hex 0.25 mm/r (0.13 - 0.51)
vc 325 m/min (375 - 255)
K2.2.C.UT, Hardness: 245 HB
K
ap 2 mm (0.5 - 4)
fn 0.59 mm/r (0.31 - 1.21)
hex 0.25 mm/r (0.13 - 0.51)
vc 200 m/min (250 - 140)
Start values (KAPR 95 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 2 mm (0.5 - 3)
fn 0.25 mm/r (0.13 - 0.51)
hex 0.25 mm/r (0.13 - 0.51)
vc 325 m/min (375 - 255)
K2.2.C.UT, Hardness: 245 HB
K
ap 2 mm (0.5 - 3)
fn 0.25 mm/r (0.13 - 0.51)
hex 0.25 mm/r (0.13 - 0.51)
vc 200 m/min (250 - 140)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
K
Chip breaker(CBMD)
M5W
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.16 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroTurn PRIME CP-B11
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
11 mm
Corner radius
(RE)
0.8 mm
Wiper insert(WEP)
Yes
Major cutting edge angle(KRINS)
95 °
Insert rake angle(GAN)
9 °
Hand
(HAND)
Neutral
Grade
(GRADE)
4325
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
5 mm
Clearance angle major(AN)
6 °
Weight of item(WT)
0.0088 kg
Insert seat - metric(SSC_M)
CP-B11
Insert seat size code imperial view(SSC_N)
CP-B11
Release date(ValFrom20)
11/1/16
Release pack id(RELEASEPACK)
17.1
