Generic representation
Being replaced by CSGX060608T01020 675
Available
Different grade vs. the original product – Please check cutting speed.
Available
Package quantity: 10
ISO: CSGX060608T01020 670
Material Id: 5725971
EAN: 80020743
ANSI: CSGX242T0320 670

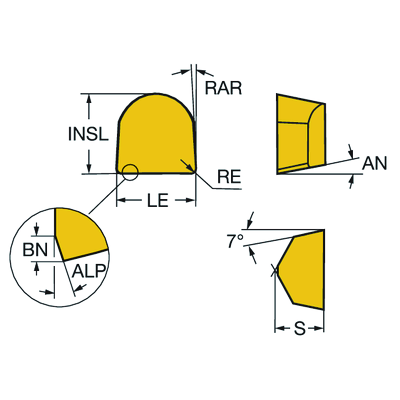

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
S
Operation type
(CTPT)
pre-machining with demand on surface
Insert size and shape
(CUTINT_SIZESHAPE)
RC0606 -shape CSGX
Cutting edge count(CEDC)
1
Cutting width
(CW)
6.35 mm
Cutting width lower tolerance(CWTOLL)
-0.025 mm
Cutting width upper tolerance(CWTOLU)
0.025 mm
Corner radius left(REL)
0.7874 mm
Corner radius right(RER)
0.7874 mm
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
670
Weight of item(WT)
0.002 kg
Release date(ValFrom20)
8/12/02
Release pack id(RELEASEPACK)
02.2
