CXS-05TH28WH-5215R 1025
CXS-05TH28WH-5215R 1025

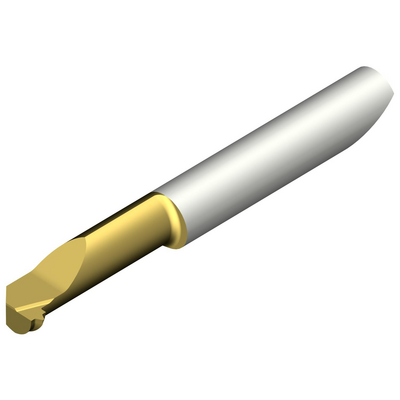

CoroTurn® XS, solid carbide tool for thread turningchevron_right
Specific representation
Available within a week
Package quantity: 1
ISO: CXS-05TH28WH-5215R 1025
Material Id: 5726382
EAN: 11788490
ANSI: CXS-05TH28WH-5215R 1025
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
H
Thread form(THFT)
BSF (Withworth 55°)
Threads per inch(TPI)
28
Thread profile type(TPT)
full profile
Thread tolerance class(TCTR)
Class A
Theoretical thread height(HA)
0.73 mm
Thread height difference(HB)
0.14 mm
Corner radius
(RE)
0.12 mm
Connection - machine side(ADINTMS)
CoroTurn XS -metric: 5
Minimum bore diameter
(DMIN)
5.2 mm
Maximum overhang
(OHX)
17.2 mm
Usable length
(LU)
15 mm
Hand
(HAND)
Right
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
5 mm
Protruding length(LPR)
37.25 mm
Functional length(LF)
36.45 mm
Functional width(WF)
2.45 mm
Functional height(HF)
0 mm
Body width(WB)
3.75 mm
Weight of item(WT)
0.0086 kg
Overall length(OAL)
40.6 mm
Standard number(STDNO_1)
ISO 228-1982
Standard number(STDNO_2)
BS 2779-1973
Standard number(STDNO_3)
BS 84-1956
Release date(ValFrom20)
1/26/04
Release pack id(RELEASEPACK)
04.1
