CXS-06TH180UN-6215R 1025
CXS-06TH180UN-6215R 1025

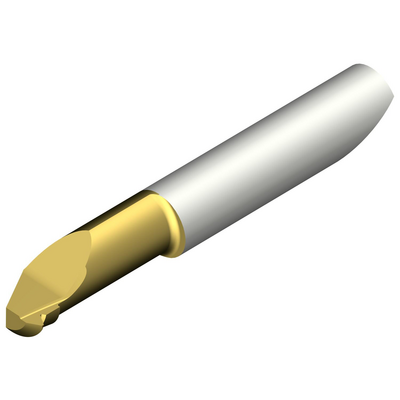

CoroTurn® XS, solid carbide tool for thread turningchevron_right
Specific representation
Available
Package quantity: 1
ISO: CXS-06TH180UN-6215R 1025
Material Id: 5726643
EAN: 12239220
ANSI: CXS-06TH180UN-6215R 1025
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
H
Thread form(THFT)
UN 60°, UNC 60°, UNF 60°
Threads per inch(TPI)
18
Thread profile type(TPT)
full profile
Thread tolerance class(TCTR)
2B
Theoretical thread height(HA)
1.25 mm
Thread height difference(HB)
0.15 mm
Spot chamfer(CF)
0.18 mm
Connection - machine side(ADINTMS)
CoroTurn XS -metric: 6
Minimum bore diameter
(DMIN)
6.2 mm
Maximum overhang
(OHX)
17.25 mm
Usable length
(LU)
15 mm
Hand
(HAND)
Right
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
6 mm
Protruding length(LPR)
37.25 mm
Functional length(LF)
36.5 mm
Functional width(WF)
2.95 mm
Functional height(HF)
0 mm
Body width(WB)
4.85 mm
Weight of item(WT)
0.017 kg
Overall length(OAL)
41.05 mm
Standard number(STDNO_1)
ISO 5864-1978
Release date(ValFrom20)
1/29/07
Release pack id(RELEASEPACK)
07.1
