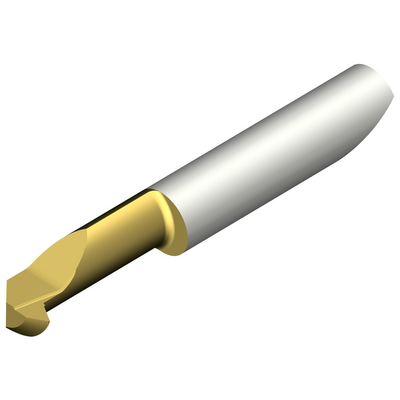

CoroTurn® XS, solid carbide tool for thread turningchevron_right
Specific representation
Available
Package quantity: 1
ISO: CXS-06TH18NT-6215R 1025
Material Id: 5726640
EAN: 11789153
ANSI: CXS-06TH18NT-6215R 1025
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
H
Thread form(THFT)
NPT 60°
Threads per inch(TPI)
18
Thread profile type(TPT)
full profile
Theoretical thread height(HA)
1.64 mm
Thread height difference(HB)
0.04 mm
Corner radius
(RE)
0.1 mm
Connection - machine side(ADINTMS)
CoroTurn XS -metric: 6
Minimum bore diameter
(DMIN)
6.2 mm
Maximum overhang
(OHX)
17.2 mm
Usable length
(LU)
15 mm
Hand
(HAND)
Right
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
6 mm
Protruding length(LPR)
37.25 mm
Functional length(LF)
36.25 mm
Functional width(WF)
2.95 mm
Functional height(HF)
0 mm
Body width(WB)
3.95 mm
Weight of item(WT)
0.0213 kg
Overall length(OAL)
41.3 mm
Standard number(STDNO_1)
ANSI B.1.20.1-1983
Release date(ValFrom20)
1/26/04
Release pack id(RELEASEPACK)
04.1
