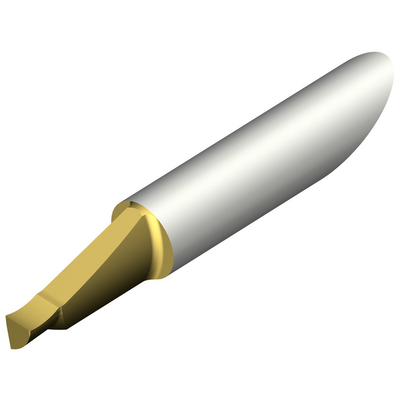

CoroTurn® XS, solid carbide tool for face groovingchevron_right
Specific representation
Available within a week
Package quantity: 1
ISO: CXS-10F400-10020AR 1025
Material Id: 6365882
EAN: 26365882
ANSI: CXS-10F400-10020AR 1025
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Cutting width
(CW)
4 mm
Cutting width lower tolerance(CWTOLL)
0 mm
Cutting width upper tolerance(CWTOLU)
0.05 mm
Corner radius left(REL)
0.2 mm
Corner radius right(RER)
0.2 mm
Corner radius lower tolerance(RETOLL)
-0.02 mm
Corner radius upper tolerance(RETOLU)
0.02 mm
Cutting depth maximum
(CDX)
20 mm
Axial groove inside diameter minimum(DAXIN)
12 mm
Axial groove support direction(AXGSUP)
1
Connection - machine side(ADINTMS)
CoroTurn XS -metric: 10
Maximum overhang
(OHX)
28 mm
Hand
(HAND)
Right
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
10 mm
Functional length(LF)
52.25 mm
Usable length
(LU)
20 mm
Functional width(WF)
2.65 mm
Functional height(HF)
0 mm
Weight of item(WT)
0.0493 kg
Overall length(OAL)
60.91 mm
Release date(ValFrom20)
2/20/13
Release pack id(RELEASEPACK)
13.1
