Generic representation
Available
Package quantity: 1
ISO: DE10-1470-140-M5 4334
Material Id: 8466568
EAN: 7323227672175
ANSI: DE10-1470-140-M5 4334
Start values (LxD 1 )
P2.1.Z.AN, Hardness: 175 HB
P
fn 0.013 in/r (0.007 - 0.018)
vc 360 sfm (460 - 260)
K2.2.C.UT, Hardness: 245 HB
K
fn 0.014 in/r (0.007 - 0.018)
vc 425 sfm (560 - 295)
N1.3.C.AG, Hardness: 90 HB
N
fn 0.014 in/r (0.01 - 0.017)
vc 690 sfm (820 - 520)

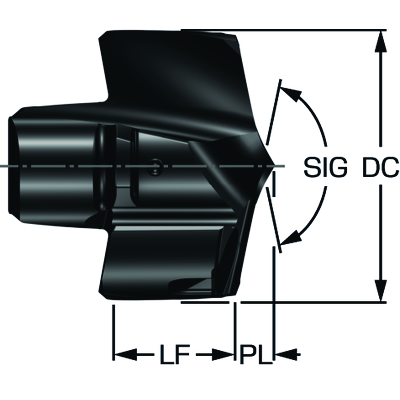

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
H
Insert mounting style code (metric)(IFS)
other clamping system
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill DE10 -size 140
Cutting edge count(CEDC)
1
Cutting diameter
(DC)
0.5787 inch
Achievable hole tolerance(TCHA)
H9
Point angle(SIG)
158 °
Hand
(HAND)
Right
Grade
(GRADE)
4334
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Point length(PL)
0.0807 inch
Functional length(LF)
0.2315 inch
Weight of item(WT)
0.0176 lb
Overall length(OAL)
0.5417 inch
Insert seat - metric(SSC_M)
140
Insert seat size code imperial view(SSC_N)
140
Release date(ValFrom20)
2/24/25
Release pack id(RELEASEPACK)
25.1
