DNGA150408S01525 6050content_copy

DNGA150408S01525 6050

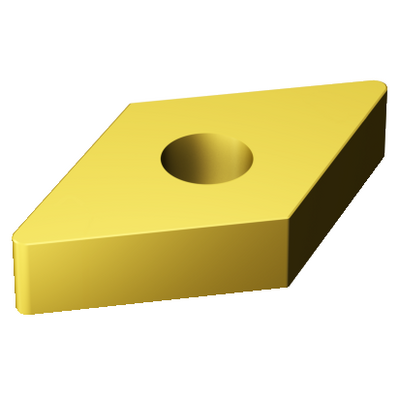

Generic representation
Available
Package quantity: 10
ISO: DNGA150408S01525 6050file_copy
Material Id: 5731963file_copy
EAN: 11598160file_copy
ANSI: DNGA432S0625 6050file_copy
Start values  (KAPR  93 deg )
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.15  mm   (0.07 - 0.4)
fn 0.14  mm/r   (0.07 - 0.27)
hex 0.08  mm/r   (0.04 - 0.16)
vc 165  m/min   (165 - 135)

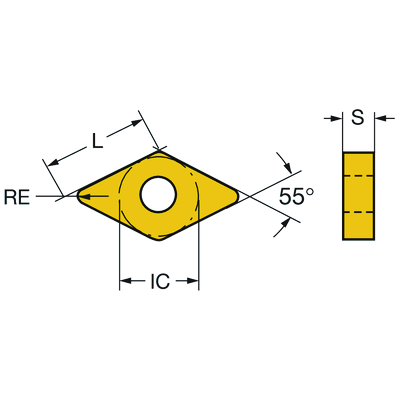

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
H
Search Icon
Operation type (CTPT)info
finishingSearch Icon
Fixing hole diameter(D1)info
5.156 mmSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
DN1504Search Icon
Cutting edge count(CEDC)info
4Search Icon
Insert shape code(SC)info
Rhombic 55Search Icon
Cutting edge effective length(LE)info
14.7038 mmSearch Icon
Corner radius (RE)info
0.7938 mmSearch Icon
Face land width(BN)info
0.15 mmSearch Icon
Face land angle(GB)info
25 °Search Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
6050Search Icon
Substrate(SUBSTRATE)info
CCSearch Icon
Coating(COATING)info
PVD TiNSearch Icon
Weight of item(WT)info
0.0066 kgSearch Icon
Release date(ValFrom20)info
7/14/03Search Icon
Release pack id(RELEASEPACK)info
03.2Search Icon
