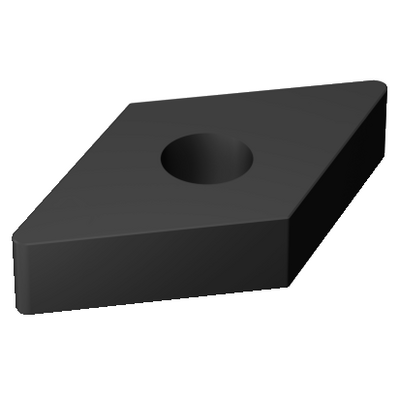

Generic representation
Available within a week
Package quantity: 10
ISO: DNGA150412T01020 650
Material Id: 5731529
EAN: 10519434
ANSI: DNGA433T0320 650
Start values (KAPR 93 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 1.5 mm (0.1 - 4.5)
fn 0.14 mm/r (0.07 - 0.3)
hex 0.14 mm/r (0.07 - 0.3)
vc 310 m/min (350 - 205)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
S
H
Operation type
(CTPT)
finishing
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
DN1504
Cutting edge count(CEDC)
4
Insert shape code(SC)
Rhombic 55
Cutting edge effective length(LE)
14.3038 mm
Corner radius
(RE)
1.1906 mm
Face land width(BN)
0.1 mm
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
650
Substrate(SUBSTRATE)
CM
Weight of item(WT)
0.0037 kg
Release date(ValFrom20)
12/3/90
Release pack id(RELEASEPACK)
91.1
