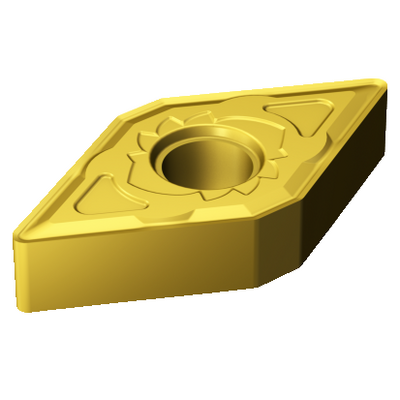

Generic representation
Available within a week
Package quantity: 10
ISO: DNMG 15 06 08-SM S05F
Material Id: 5915079
EAN: 25915079
ANSI: DNMG 442-SM S05F
Start values (KAPR 93 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 2 mm (0.2 - 2.5)
fn 0.22 mm/r (0.1 - 0.28)
hex 0.22 mm/r (0.1 - 0.28)
vc 70 m/min (90 - 65)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
S
Chip breaker(CBMD)
SM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
DN1506
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Rhombic 55
Cutting edge effective length(LE)
6.4 mm
Corner radius
(RE)
0.7938 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
S05F
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
6.35 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0147 kg
Insert seat - metric(SSC_M)
15
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
9/21/10
Release pack id(RELEASEPACK)
10.2
