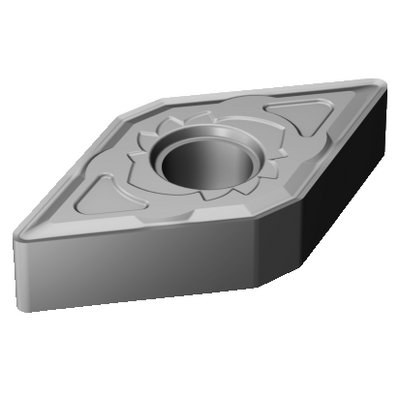

Generic representation
List price: 21.55 EUR
Available
Package quantity: 10
ISO: DNMG 15 06 12-SM 1205
Material Id: 8432183
EAN: 7323227514062
ANSI: DNMG 443-SM 1205
Start values (KAPR 93 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.079 in (0.012 - 0.118)
fn 0.01 in/r (0.005 - 0.012)
hex 0.01 in/r (0.005 - 0.012)
vc 125 sfm (270 - 95)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
S
Chip breaker(CBMD)
SM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
0.203 inch
Insert size and shape
(CUTINT_SIZESHAPE)
DN1506
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
0.5 inch
Insert shape code(SC)
Rhombic 55
Cutting edge effective length(LE)
0.252 inch
Corner radius
(RE)
0.0469 inch
Hand
(HAND)
Neutral
Grade
(GRADE)
1205
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlTiN
Insert thickness(S)
0.25 inch
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0353 lb
Insert seat - metric(SSC_M)
15
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
2/26/24
Release pack id(RELEASEPACK)
24.1
