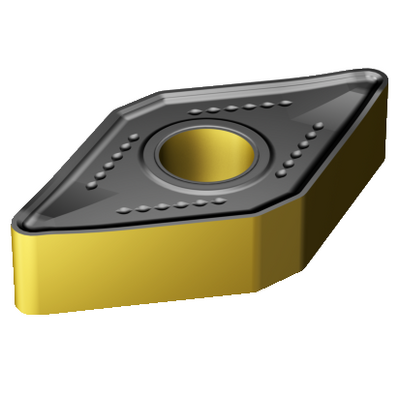

Generic representation
Package quantity: 10
ISO: DNMM 15 06 12-MR 2220
Material Id: 7231399
EAN: 7323221713997
ANSI: DNMM 443-MR 2220
Start values (KAPR 93 deg )
M1.0.Z.AQ, Hardness: 200 HB
M
ap 3 mm (1 - 6)
fn 0.4 mm/r (0.25 - 0.7)
hex 0.4 mm/r (0.25 - 0.7)
vc 165 m/min (210 - 115)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
Chip breaker(CBMD)
MR
Operation type
(CTPT)
roughing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
DN1506
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Rhombic 55
Cutting edge effective length(LE)
14.3038 mm
Corner radius
(RE)
1.1906 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
2220
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
6.35 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0122 kg
Insert seat - metric(SSC_M)
15
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
2/19/17
Release pack id(RELEASEPACK)
17.1
