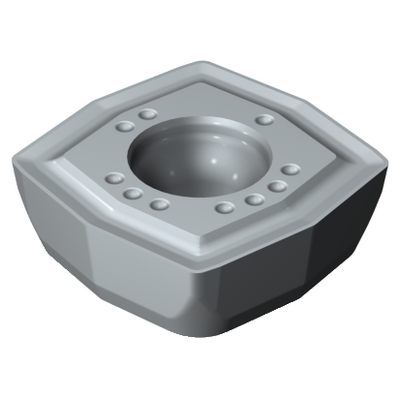

Generic representation
Available within a week
Package quantity: 10
ISO: DS20-0306-C-L5 H13A
Material Id: 7549932
EAN: 7323223649959
ANSI: DS20-0306-C-L5 H13A
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
N
Insert usage code(INSUC)
C
Chip breaker(CBMD)
L5
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill DS20-0306-C
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
8.88 mm
Corner radius
(RE)
0.35 mm
Insert rake angle(GAN)
2.5 °
Grade
(GRADE)
H13A
Substrate(SUBSTRATE)
HW
Insert thickness(S)
3 mm
Weight of item(WT)
0.0019 kg
Insert seat - metric(SSC_M)
03C
Release date(ValFrom20)
9/24/19
Release pack id(RELEASEPACK)
19.2
