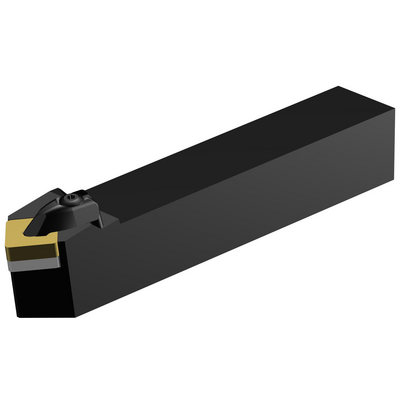

Specific representation
Available within a week
Package quantity: 1
ISO: DSDNN 4040S 25
Material Id: 5733061
EAN: 11533756
ANSI: DSDNN 4040S 25
Technical illustrations
Generic representation
Product data
Tool cutting edge angle(KAPR_1)
45 °
Tool cutting edge angle(KAPR_2)
45 °
Lead angle(PSIR)
45 °
Clamping type code(MTP)
clamp on top of insert and into hole
Insert type(CUTINT_MASTER)
SNMG 250724
Connection - machine side(ADINTMS)
Rectangular shank -metric: 40 x 40
Maximum ramping angle
(RMPX)
40 °
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
2.252 inch
Hand
(HAND)
Neutral
Coolant exit style(CXSC)
no coolant exit
Coolant entry style(CNSC)
without coolant entry
Shank width(B)
1.5748 inch
Shank height(H)
1.5748 inch
Functional length(LF)
9.8425 inch
Functional width(WF)
0.8268 inch
Functional height(HF)
1.5748 inch
Orthogonal rake angle(GAMO)
-6 °
Inclination angle(LAMS)
-6 °
Torque(TQ)
7.0068 ftlbf
Body material(BMC)
Steel
Weight of item(WT)
6.6668 lb
Master insert identification(MIID)
SNMG 25 07 24
Overall length(OAL)
9.8425 inch
Insert seat - metric(SSC_M)
25
Insert seat size code imperial view(SSC_N)
1
Release date(ValFrom20)
12/2/02
Release pack id(RELEASEPACK)
03.1
