Generic representation
Available
Package quantity: 1
ISO: EFF-25-10
Material Id: 8184247
EAN: 7323226497106
ANSI: EFF-25-10

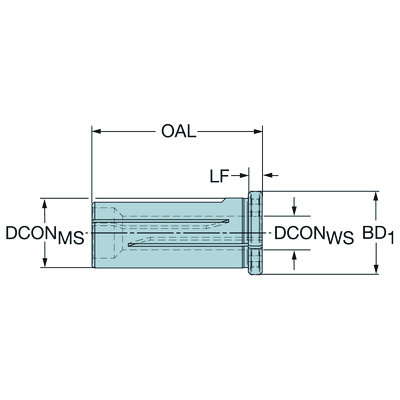

Technical illustrations
Product data
Connection - machine side(ADINTMS)
Cylindrical shank (ISO9766 drill shank with flange) -metric: 25
Connection - workpiece side
(ADINTWS)
Cylindrical clamping (sleeve) -metric: 10
Sealing property(SEAL)
Yes
Location aid property(LOCAP)
Yes
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
axial concentric on circle
Coolant pressure(CP)
150 bar
Connection diameter machine side(DCONMS)
25 mm
Connection diameter workpiece side(DCONWS)
10 mm
Functional length(LF)
5 mm
Overall length(OAL)
61 mm
Body diameter(BD)
30 mm
Body length(LB)
5 mm
Body half taper angle(BHTA)
0 °
Weight of item(WT)
0.1736 kg
Release date(ValFrom20)
8/27/21
Release pack id(RELEASEPACK)
22.1
