Specific representation
Available
Package quantity: 1
ISO: L148C-31-0602
Material Id: 5734439
EAN: 10358073
ANSI: L148C-31-0602

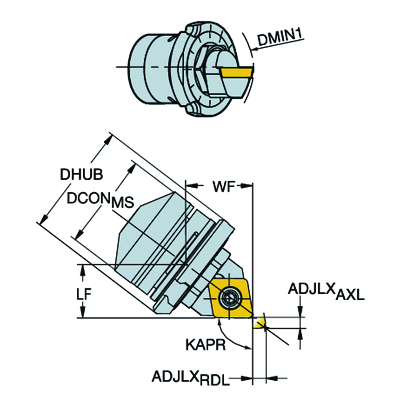

Technical illustrations

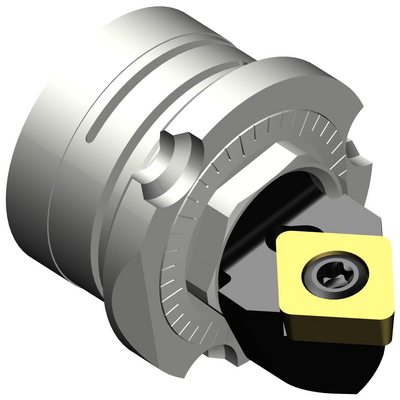

Generic representation
Product data
Tool cutting edge angle
(KAPR)
90 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CCMT 060200 (RE<0.4)
Connection - machine side(ADINTMS)
Fine Boring Unit -angular mounting -size 1
Minimum bore diameter
(DMIN)
24.8 mm
Adjustability(ADJBY)
Yes
Hand
(HAND)
Left
Coolant entry style(CNSC)
without coolant entry
Functional length(LF)
13.95 mm
Functional width(WF)
0.45 mm
Overall length(OAL)
25.15 mm
Torque(TQ)
0.9 Nm
Weight of item(WT)
0.0537 kg
Release date(ValFrom20)
3/29/99
Release pack id(RELEASEPACK)
99.1
