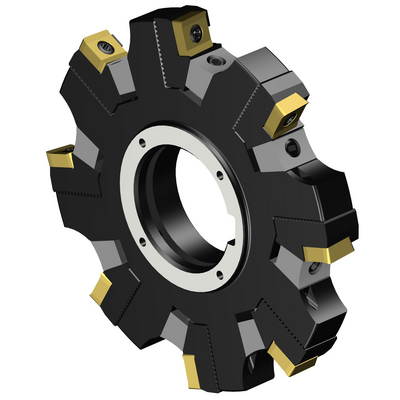

L331.52C-125S40KM
L331.52C-125S40KM
Specific representation
Available within a week
Package quantity: 1
ISO: L331.52C-125S40KM
Material Id: 7843378
EAN: 7323224953420
ANSI: L331.52C-125S40KM
Technical illustrations
Technical illustrations
Product data
Cutting diameter
(DC)
125 mm
Cutting depth maximum
(CDX)
34 mm
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 11 (N/L331.1A-11RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
8
Connection - machine side(ADINTMS)
Arbor -ISO 240 -1 key drive -metric: 40
Hand
(HAND)
Left
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
40 mm
Hub diameter(DHUB)
55 mm
Hub thickness(THUB)
18.5 mm
Drive count(DRVCT)
1
Functional length(LF)
16.75 mm
Torque(TQ)
3 Nm
Rotational speed maximum(RPMX)
12,400 1/min
Weight of item(WT)
0.878 kg
Body diameter(BD)
121.4 mm
Body length(LB)
14.4 mm
Overall length(OAL)
18.5 mm
Release date(ValFrom20)
5/26/20
Release pack id(RELEASEPACK)
20.2
