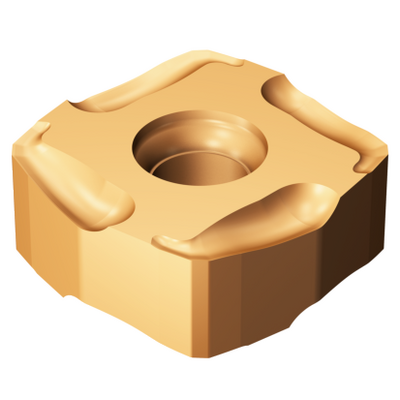

Generic representation
Available within a week
Package quantity: 10
ISO: L365-1505ZNE-KL 1020
Material Id: 5735331
EAN: 12237072
ANSI: L365-1505ZNE-KL 1020
Start values (KAPR 65 deg )
K2.2.C.UT, Hardness: 245 HB
K
fz 0.009 in (0.005 - 0.012)
hex 0.008 in (0.004 - 0.011)
vc 480 sfm (570 - 410)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
Chip breaker(CBMD)
KL
Operation type
(CTPT)
light
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
0.1811 in
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill 365 -1505
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
0.5906 in
Cutting edge effective length(LE)
0.252 in
Depth of cut maximum
(APMX)
0.2362 in
Corner chamfer(KCH)
30 °
Corner chamfer width(CHW)
0.026 in
Wiper edge length(BS)
0.0591 in
Wiper edge radius(BSR)
5.9055 in
Corner radius
(RE)
0.0118 in
Major cutting edge angle(KRINS)
65 °
Hand
(HAND)
Left
Grade
(GRADE)
1020
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
0.2228 in
Weight of item(WT)
0.0271 lb
Insert seat - metric(SSC_M)
15
Insert seat size code imperial view(SSC_N)
15
Release date(ValFrom20)
1/29/07
Release pack id(RELEASEPACK)
07.1
