New

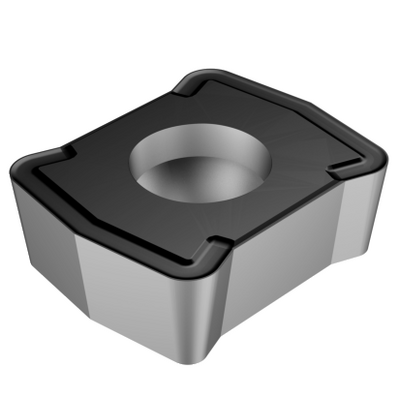

Generic representation
Available
Package quantity: 10
ISO: LCMX 03 03 08T-53 4344
Material Id: 8804629
EAN: 7323228763544
ANSI: LCMX 03 03 08T-53 4344
Start values (LxD 1 )
P2.1.Z.AN, Hardness: 175 HB
P
fn 0.08 mm/r (0.06 - 0.1)
vc 175 m/min (215 - 115)
M1.0.Z.AQ, Hardness: 200 HB
M
fn 0.08 mm/r (0.04 - 0.1)
vc 155 m/min (180 - 115)
K2.2.C.UT, Hardness: 245 HB
K
fn 0.1 mm/r (0.08 - 0.12)
vc 115 m/min (140 - 75)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
H
Insert usage code(INSUC)
P+C
Chip breaker(CBMD)
53
Operation type
(CTPT)
medium feed
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.5 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill 881/U LC0303xx
Cutting edge count(CEDC)
2
Corner radius
(RE)
0.8 mm
Insert rake angle(GAN)
18 °
Grade
(GRADE)
4344
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
3.175 mm
Weight of item(WT)
0.0011 kg
Insert seat - metric(SSC_M)
03
Insert seat size code imperial view(SSC_N)
7/32
Release date(ValFrom20)
9/24/25
Release pack id(RELEASEPACK)
25.2
