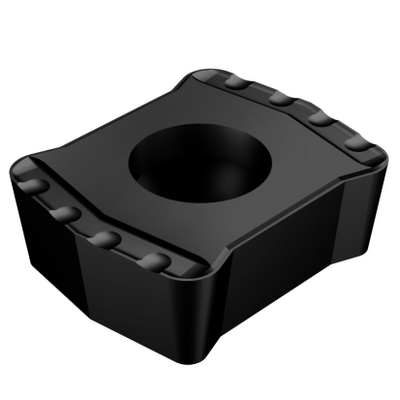

Generic representation
Available
Package quantity: 10
ISO: LCMX 04 03 04-58 3040
Material Id: 5735060
EAN: 11101230
ANSI: LCMX 04 03 04-58 3040
Start values (LxD 1 )
P2.1.Z.AN, Hardness: 175 HB
P
fn 0.004 in/r (0.003 - 0.005)
vc 810 sfm (950 - 590)
M1.0.Z.AQ, Hardness: 200 HB
M
fn 0.004 in/r (0.002 - 0.005)
vc 680 sfm (820 - 460)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
Insert usage code(INSUC)
P
Chip breaker(CBMD)
58
Operation type
(CTPT)
medium feed
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
0.1102 inch
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill 881/U LC0403xxP
Cutting edge count(CEDC)
2
Corner radius
(RE)
0.0157 inch
Insert rake angle(GAN)
20 °
Grade
(GRADE)
3040
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3
Insert thickness(S)
0.125 inch
Weight of item(WT)
0.0046 lb
Insert seat - metric(SSC_M)
04
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
11/30/98
Release pack id(RELEASEPACK)
99.1
